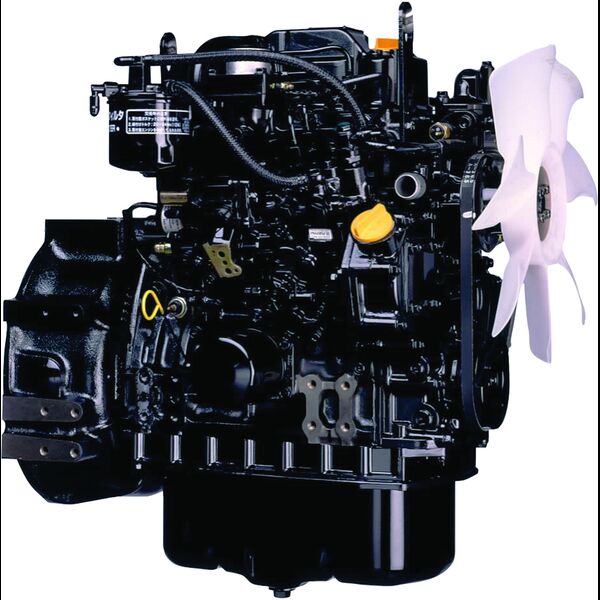

Isuzu 3CH1 Engine
The Isuzu 3CH1 diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 14.9 HP, constant speed rating option along with a 23.9 HP, variable speed rating option.
Features
- Displacement: 0.9 L – 1.6 L
- Naturally aspirated
- Peak torque: 36.5 lb/ft – 45.1 lb/ft (varies by model)
- Fuel consumption: .413 LB/HP-HR – .465 LB/HP-HR
- Flywheel housing: SAE 5 – 6
- Electronic self-priming fuel lift pump
- 12V electronics
- Glow plug starting aid
- High angularity oil pan
- 250-hour or 500-hour oil drain & service interval
- 2-year / 2,000-hour limited warranty*
| Base Specifications | |
|---|---|
| Displacement |
1.3 L, 79.3 cu in |
| Emissions |
EPA Tier 4F, Stage V |
| Dry Weight | 326 |
| Cylinders | 3 |
| Cycle | 4 Stroke |
| Engine Rating | Constant Speed |
|
3CH1 (14.9 HP)
(Plus Base Specs) | |
| Horsepower | 14.9 hp |
| Power | 11.1 kW |
| Engine Speed | 1800 RPMs |
|
3CH1 (23.9 HP)
(Plus Base Specs) | |
| Horsepower | 23.9 hp |
| Power | 17.8 kW |
| Engine Speed | 3000 RPMs |
